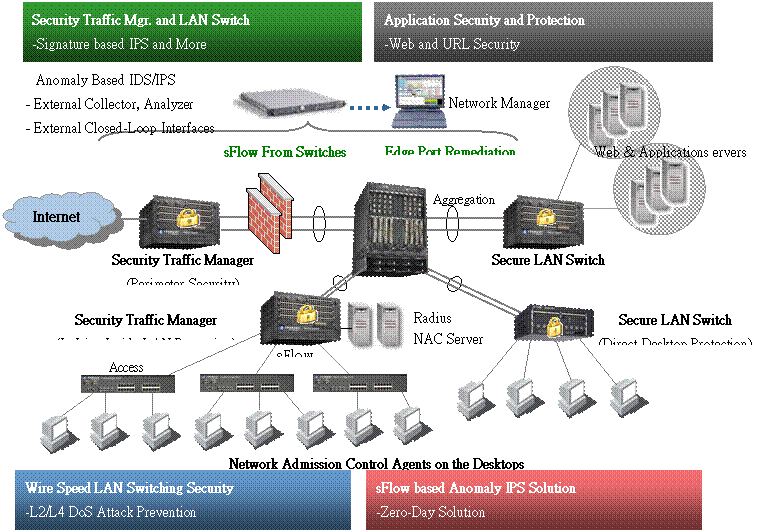

Foundry Networks 資訊安全解決方案範例圖示 :





























































Foundry FastIron Edge Switch : FES2402、FES4802、FES2402POE、FES4802POE



支援以下標準:802.1d Bridging,802.1D-1998, 802.1q/p VLAN Tagging and Priority,802.1w Rapid Spanning Tree,802.1x Port-based Authentication,802.3 10Base-T,802.3 Ethernet Like MIB,802.3ad Link Aggregation,802.3u 100Base-TX,802.3z 1000Base-SX/LX/TX。

支援以下協定:AappleTalk,DNS Client,IP (RFC 1812),IPX RIP/SAP,OPSF NSSA (RFC 1587),OSPF (RFC 1583),OSPF Database Overflow (RFC 1765),OSPF Traps (RFC 1850),OSPFv2 (RFC 2328v2),RIPv1 (RFC 1058),RIPv2 (RFC 1723),VRRP (RFC 2338),VRRPE (Foundry VRRP Enhanced)。

支援以下IP Multicast標準:DVMRPv2,DVMRP Host Requirements (RFC 1122),IGMP Snooping,IGMPv1 (RFC 1112),IGMPv2 (RFC 2236),PIM-DM (draft-ietf-v2-dm-03),PIM-SM (RFC 2362)。

提供Layer 2 Enhancements功能:4,096 VLANs,64,000 MAC Address,Address Lock Filtering,Dual Mode VLANs,Fast Port Span, Fast Uplink Span,Generic VLAN Registration Protocol,MAC-Layer Filtering,Mirror/ Monitor Ports,PerVLAN Group Spanning Tree (PVGST),PerVLAN STP (PVST/PVST+),Server Trunk Groups,Single-instance Spanning Tree。

提供Layer 3 Enhancements功能:64,000 IP Routes, DiffServ Support,ToS/DSCP Control via ACLs。

管理控制能力:802.3 MAU MIB (RFC 2239),Architecture for Describing SNMP Framework (RFC 2571),BootP (RFC 951 & RFC 1542),BootP/DHCP Relay (RFC 2131),Bridge MIB (RFC 1493),Configuration Logging,Ethernet Interface MIB (RFC 1643),Ethernet MIB (RFC 1643),HTTP (RFC 2068),ICMP Router Discovery Protocol (RFC 1256),Industry Standard Command Line Interface (CLI),IP Forwarding Table MIB (RFC 1354),Integration with HP OpenView for Sun Solaris, HP-UX,IBM's AIX,and Windows



  Foundry FastIron Edge Switch X-Series: FESX424、FESX448、FESX424HF



NT Standalone Windows NT,IronView Network Manager (INM) Web-based graphical user interface,JetScope/ sFlow (RFC3176),MIB-II (RFC 1213),Repeater MIB (RFC 1516),RIPv2 MIB (RFC 1724),RMON MIB (RFC 1757),Support for Multiple SysLogD Servers,SNMP Message Processing and Dispatching (RFC 2572),SNMP MIB II (RFC 1573),SNMP View-based Access Control Model SNMP(RFC 2575),SNMPv1/v2c (RFC 1157),SNMPv3 Applications (RFC 2573),SNMPv3 Intro to Framework (RFC 2570),SNMPv3 User-based Security Model (RFC 2574),TELNET (RFC 854),TFTP (RFC 783)。

提供安全選擇元件:Authentication, Authorization,& Accounting(AAA),Bi-level Access Mode (Standard and EXEC Level),Protection for Denial of Service attacks,RADIUS,Secure Copy (SCP),Secure Shell,TACACS/ TACACS+,Username/Password。

支援以下標準:802.1d Bridging,802.1D-1998,802.1q/p VLAN Tagging and Priority,802.1w Rapid Spanning Tree,802.1X Port-based Authentication Dynamic VLAN, ACL, and MAC Filter Group Assignment,802.3 10Base-T,802.3 Ethernet Like MIB,802.3ad Link Aggregation (Dynamic and Static) and Trunk Groups,802.3u 100Base-TX,802.3z 1000Base-SX/LX/T,802.3ae 10 Gigabit Ethernet。

支援以下協定:DNS Client,IP (RFC 1812),OPSF NSSA (RFC 1587),OSPF (RFC 1583),OSPF Interactions (RFC1745),OSPF Database Overflow (RFC 1765),OSPF Traps (RFC 1850),OSPFv2 (RFC 2328v2),OSPF w/Digital Signatures (Password, MD-5)(RFC 2154),OSPFv2 MIB(RFC 1850),RIPv1 (RFC 1058),RIPv2 (RFC 1723),RIP Requirements (RFC 1812),VRRP (RFC 2338),VRRPE (Foundry VRRP Enhanced),BGPv4 (RFC1771),Communities and Attributes (RFC1997),Route flap dampening (RFC2439),Route reflection (RFC2796),BGP4 Confederations (RFC1965),Capability Advertisement (RFC2842),Route Refresh Capability (RFC2918),Managed Objects for BGP (RFC1269),BGP Session Protection via TCP MD5 (RFC2385)。

支援以下IP Multicast標準:DVMRP Host Requirements (RFC 1122),DVMRPv2,IGMP Snooping,IGMPv1(RFC 1112),IGMPv2(RFC 2236),PIM-DM(draft-ietf-v2-dm-03),PIM-SM(RFC 2362)。

提供Layer 2 Features功能:4,096 VLANs,16,000 MAC Address,Protocol VLAN (802.1v),Private VLAN,Subnet VLAN,Port Security (MAC Address Locking),Layer 2 ACLs,Dual Mode VLANs,Fast Port Span,Protected-link,Generic VLAN Registration Protocol,MAC-Layer Filtering,Mirror/Monitor Ports,Per VLAN STP (PVST/PVST+),VLAN Groups,Single-instance Spanning Tree,Metro

Ring Protocol(MRP),Virtual Switch Redundancy Protocol (VSRP),Uni-Directional Link Detection (UDLD)。

提供Layer 3 Enhancements功能:4,000 IP Routes for Based L3,128,000 IP Routes,Layer 3 IP ACLs。

管理控制能力:Virtual Cable Tester,802.3 MAU MIB (RFC 2239),Architecture for Describing SNMP Framework (RFC 2571),BootP (RFC 951 & RFC 1542),BootP/DHCP Relay (RFC 2131),Bridge MIB (RFC 1493),Configuration Logging,Ethernet Interface MIB (RFC 1643),Ethernet MIB (RFC 1643),HTTP (RFC 2068),ICMP Router Discovery Protocol (RFC 1256),Industry Standard Command Line Interface (CLI),IP Forwarding Table MIB (RFC 1354),Integration with HP OpenView for Sun Solaris,HP-UX,IBM's AIX,and Windows NT,IronView Network Manager (INM) Web-based graphicaluser interface,Embedded Web Management,JetScope/sFlow (RFC3176),MIB-II (RFC 1213),Repeater MIB (RFC 1516),RIPv2 MIB (RFC 1724),RMON MIB (RFC 1757),Support for Multiple SysLogD Servers,SNMP Message Processing and Dispatching (RFC 2572),SNMP MIB II (RFC 1573),SNMPView-based Access Control Model SNMP(RFC 2575),SNMPv1/v2c (RFC 1157),SNMPv3 Applications (RFC 2573),SNMPv3 Intro to Framework (RFC 2570),SNMPv3 User-based Security Model (RFC 2574),TELNET (RFC 854),TFTP (RFC 783)。

提供Quality of Service (QoS)功能:802.1p Mapping to Priority Queue,MAC Address Mapping to Priority Queue,ACL Mapping to Priority Queue,ACL Mapping to ToS/DSCP,ACL Mapping and Marking of ToS/DSCP,DiffServ Support,QoS Queue Management Using WeightedRound Robin(WRR),Strict Priority(SP),and a combination of WRR and SP。





  Foundry EdgeIron Switch : EIF24GS



安全選擇元件提供:Authentication, Authorization,& Accounting (AAA),Bi-level Access Mode (Standard and EXEC Level),Protection for Denial of Service attacks,RADIUS,Secure Copy (SCP),Secure Shell,TACACS/ TACACS+,Username/Password。

提供Unicast and Multicast效能:低於10µs for Unicast port to port Latency,650-700µs Multicast Join8,6.5-7s Multicast Leave。

支援以下標準:802.1d Spanning Tree,802.1p Traffic Prioritization,802.1q VLAN Tagging,802.1w Rapid Spanning Tree,PVST (perVLAN Spanning Tree),IEEE 802.3ad,802.3x Flow Control,802.3 10BaseT,802.3u 100BaseT,802.3ab 1000Base-T,802.3z 1000Base-SX/LX /TX,802.3ae 10-GbE,IEEE 802.1p CoS Prioritization,IEEE 802.1Q VLAN,IEEE 802.1x for Port Security,802.3ad Link Aggregation。

支援以下協定:UDP (RFC 768),TFTP (RFC 783),IP (RFC 791),ICMP (RFC792),TCP (RFC 793),ARP (RFC 826),Telnet (RFC 854),BootP (RFC 951),Host Requirements (RFC 1122),Bootstrap Extensions (RFC1542),HTTP (RFC 2068)。

支援以下交換功能:Spanning Tree Protocol and 802.1w,Flow Control (802.3x),Quality of Service (802.1p),Full and Half Duplex ; Auto MDI/MDIX,VLAN Support Up to 256 VLANs,GVRP for automatic VLAN learning, Supports four levels of priority and weighted fair queuing,Broadcast storm control,Link Aggregation (802.3ad),Port Mirroring。

支援以下管理功能:In-Band Management,Telnet, Web-based HTTPS ,or SNMP (v1 and v2c),Out-of-Band Management,RS-232 DB-9 console port,Software Loading,Secure Shell  v 2。

支援以下MIB規格:MIB II (RFC 1213),Bridging MIB (RFC 1493),Ethernet-like MIB (RFC 1643),SNMP (RFC 1157),ARP (RFC826),IGMP (RFC1112),Bridge MIB (RFC 1493),RADIUS (RFC2618)。

RMON支援能力Groups 1,2,3,9 (Statistics, History, Alarm, Event) (RFC 1757)。



  Foundry EdgeIron Switch:EIF2402CF、EIF4802CF 、EIF24G、EIF48G

支援以下標準:802.1D-1998,802.3x full duplex on 10Base-T,100BaseT,1000BaseT ports,802.1QVLAN,802.1p CoS Prioritization,802.1w Rapid Spanning Tree,802.1x Port-based Authentication,802.3 10Base-T,802.3ab 1000Base-T,802.3ad Link Aggregation,802.3u 100Base-TX,802.3z 1000Base-SX/LX/TX,1000Base-T(RJ-45),1000Base-X(SX, LX, and LHA mini. GBIC optic for LC Connectors)。

支援以下交換功能:Spanning Tree Protocol and 802.1w,Flow Control (802.3x),Quality of Service (802.1p),Full and Half Duplex ; Auto MDI/MDIX,VLAN Support Up to 256 VLANs port-based or with 802.1Q VLAN tagging,GVRP for automatic VLAN learning, Supports four levels of priority and weighted fair queuing,Broadcast storm control,Link Aggregation (802.3ad),Port Mirroring。

支援以下管理功能:In-Band Management,Telnet,Web-based HTTPS ,or SNMP (v1 and v2c),Out-of-Band Management,RS-232 DB-9 console port,Software Loading,Secure Shell v 1.5。

支援以下MIB規格:MIB II (RFC 1213),Bridging MIB (RFC 1493),Ethernet-like MIB (RFC 1643),SNMP (RFC 1157),ARP (RFC826),IEGMP (RFC1157),IGMP (RFC1112),Bridge MIB (RFC 1493),RADIUS (RFC2618)。

RMON支援能力Groups 1,2,3,9 (Statistics, History, Alarm, Event) (RFC 1757)。



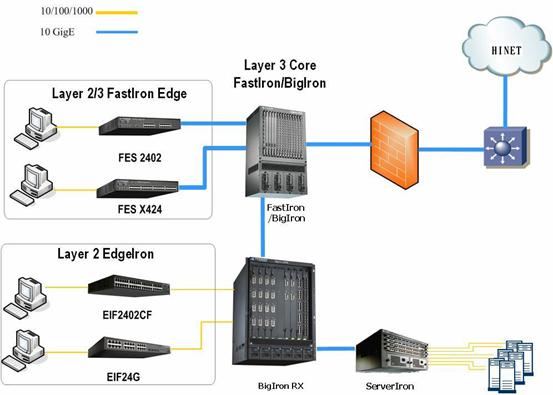

Foundry Networks Enterprise Solution應用範例 :

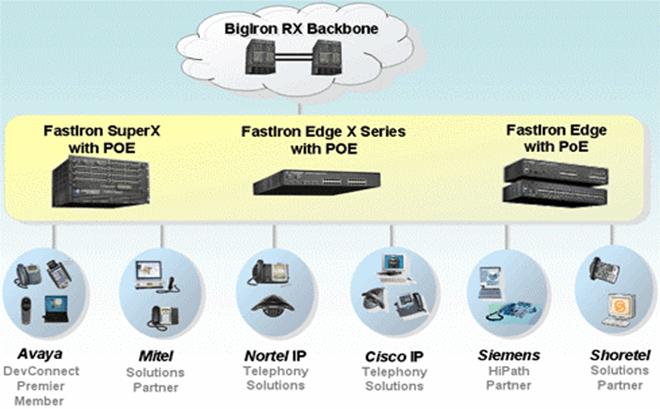

Foundry Networks VoIP Solution應用範例 :




















































Foundry Networks 設備應用範例:
